Belt Conveyor

    supplyability: 100 Set/Sets per Monthprice: 1,000 - 10,000

    Port: TIANJIN, QINGDAO, SHANGHAI

    Type: Belt Conveyor

    Application: It is mainly composed of the rack, conveyor, rollers, rotary drum, tensioning device and transmission device.

Belt Conveyor

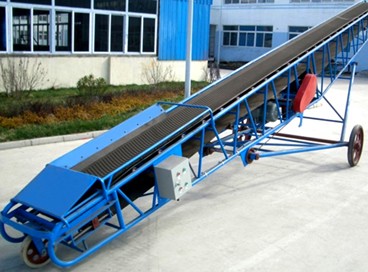

The belt conveyor is a kind of device that is driven by the friction to transport the materials in the continuous way. It is mainly composed of the rack, conveyor, rollers, rotary drum, tensioning device and transmission device. It can form the conveying process of the materials from the primary feeding end to the final discharging point in the conveying line.

It can carry out the delivery of granular materials as well as the conveying of pieces of materials. In addition to the pure material handling, it also can be compatible with the requirements of the production process in the various industrial enterprises, forming the flow process transportation line.

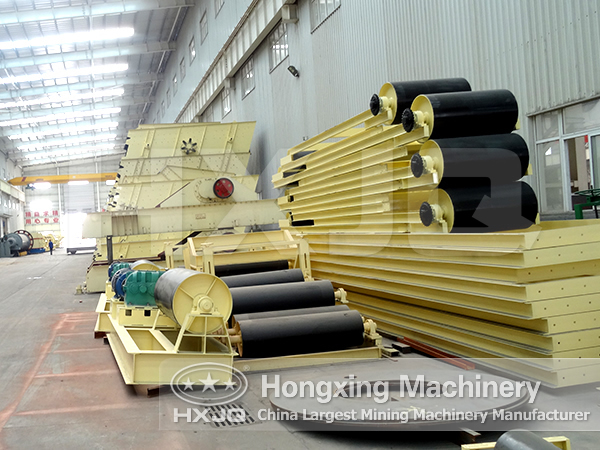

Belt Conveyor

Belt Conveyor is the ideal and efficient transport equipment that can realize the continuous operation. Compared with other transport equipment, it is featured with the following advantages:
1. It has the long transport distance and large handling capacity;
2. It can realize the continuous conveying;
3. It has the reliable operation, easy to realize the automation and centralization control.

The belt conveyor is widely used in metallurgy, coal, transport, water, electricity, chemical and other sectors because of its large conveying capacity, simple structure, easy maintenance, low cost, high versatility and other advantages. The belt conveyor is also used in building materials, electric power, light industry, food, ports, ships and other departments.

The belt conveyor has become one of the important equipments in the entire production chain. Before the operation of the belt conveyor, the first is to confirm that the belt conveyor equipment, personnel and the items to be transported are in the safe and intact state. The followed is to check all moving parts and all electrical wirings to make sure that they are normal. Finally, the operator should check the difference between the supply voltage and the rated voltage to ensure that it does not exceed ± 5%.

Practical Installation Skills of Belt Conveyor

In the project of installing belt conveyor, the installation of the rack starts from the headstock, then the middle frame in order, and finally is the tail frame. Before installing the rack, first pull a centre line on the whole length of the conveyor and maintaining the center line of the conveyor on a straight line is an important condition for the normal operation of belt conveyor, for this reason, when installing the middle frame, aim at the center line, and the permissible error of the center line is ±0.1mm. After all the single links are installed, connect them.

(1) Roller installation

After the rack, transmission device and tension device are installed, install the roller frame for upper and lower rollers to make the conveyor have a curve with slow direction changes. The space distance of the roller frame at the curving part is 1/2~1/3 of the space of normal roller frame. After the rollers are installed, make it have flexible and easy rotation.

(2) Transmission device installation

When installing transmission device, make the transmission shaft of the belt conveyor is vertical with its center line and the center of the width of the driving roller coincides the center line and the axis of the reducer is parallel with the transmission axis. At the same time, all the shafts and roll cylinder should be leveled. The horizontal error of the shaft is allowable in the range of 0.5-1.5mm according to the width of the conveyor. While installing the transmission device, the tension device such as tail pulley can be installed. The roller axis of the tension device should be vertical with the center line of the belt conveyor.

The supporting structure frame should be on a straight line and maintained horizontal. For this reason, after the driving roll and supporting roll are installed, align the center line and horizontal of the conveyor. Fix the machine frame on the foundation or floor. After the belt conveyor is fixed, install the feeding and discharging device.


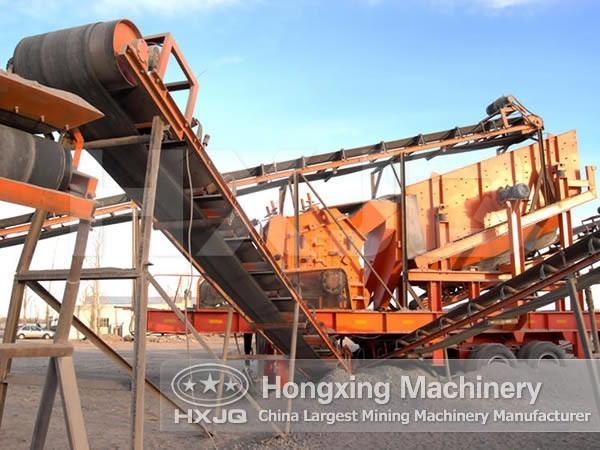

Belt Conveyor is also called conveyor belt, which is widely used in stone mining, thus named of mining belt equipment.

Conveyor belt system is an essential component of production line, and most production lines are equipped with convery belt. The elevating conveyor belt is composed of conveyor belt, roller, drum gear, driving motor, tensioning devices and other components.

The working temperature of the belt conveyor is 15-24 degree, while inclination is 12-24 degree. Too large angle requirement can be special customized by manufacturers.

The conveyor belt can be used to transport massive, granular, powder, bags and other solid materials. The applicable materials are: grain, coal, cement and so on.

Parameters type

Belt width(mm) Conveying length(m)
Power(kw)
Conveying speed(m/s) Conveying amount(t/h)
400 ≤10
3
12-15
3-4
15-30
4-7.5
1.25-2.0 30-60
500 ≤10
3
12-15
4-5.5
15-30
5.5-7.5
1.25-2.0 40-80
650 ≤10
4
12-15
7.5
15-30
7.5-11
1.25-2.0 80-120
800 ≤10
4
12-15
7.5
15-30
7.5-15
1.25-2.0 120-200
1000 ≤10
5.5
10-20
7.5-11
20-40
11-22
1.25-2.0 200-320
1200 ≤10
7.5
10-20
7.5-15
20-40
15-30
1.25-2.0 290-480
1400 ≤10
11
10-20
15-22
<20-40
22-45
1.25-2.0 400-680
1600 ≤10
15
10-20
22-30
<20-50
30-75
1.25-2.0 600-1080
1800 ≤10
18.5
10-20
30-45
<20-50
45-110
1.0-2.0 200-1500
2000 ≤10
22
10-20
45-55
<20-40
55-132
1.0-2.0 1000-2000
2400 ≤10
30
10-20
55-75
<20-40
75-185
1.0-2.0 1500-3000
