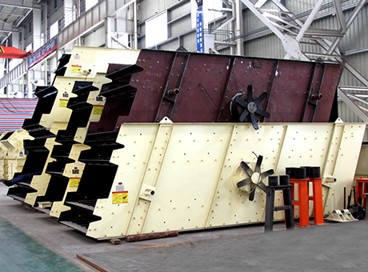

Vibrating Screen

    supplyability: 2 Set/Sets per

    Weekprice: 4,600 - 49,200

    Port: Qingdao ,Tianjin,Shanghai or others

    Type: Vibrating Separator

    Application: screening mining stone

Vibrating Screen

Vibrating screen can be divided into two types: linear vibrating screen and circular vibrating screen.

Notes in Using of Linear Vibrating Screen

The vibrating screen should be started when there are no materials on the screen and it should never be started with materials on it, and it can only be fed with materials after the screen runs stably. Before stopping it, first stop feeding and stop it after all the materials on the screen are discharged. In the working process, regularly observe the running condition of the screen, if there is abnormal movement or sound, timely stop it for examination, find out the reason and eliminate the malfunction.



The Whole Principle of Vibrating Screen

The performance characteristics of the vibrating screen:
1. The design for the screen part can make rapid screen change and rapid tensioning;
2. high efficiency, low noise;
3. Materials on the screen surface has long stroke, screening accuracy is high, processing capacity is big;
4. When sorting the materials, we need make long-distance transportation of materials;
5. You can change the spacing and angle of the screen surface according to the material size through sieve probability, productivity;
6. You can design different shapes and structures designed according to the production site.

Vibrating Screen

The structural characteristics of the vibrating screen:

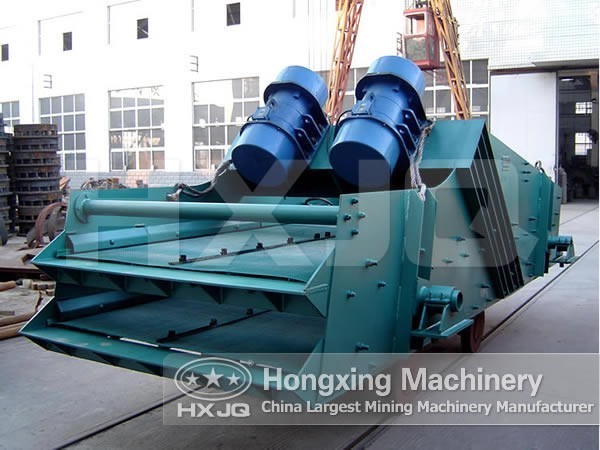

Specific structures: linear vibrating screen by screen box, grid, mesh, vibration motor, motor pedestal, damping spring, bracket.
The sieve box: It is made of several sheets of different thickness steel plate welded together, it has a certain strength and stiffness, it is the major component of the screening machine.
Grid:It is made of deformation smaller wood to keep the screen flat tension and reach a normal screening. Larger proportion or production use metal screen frame.

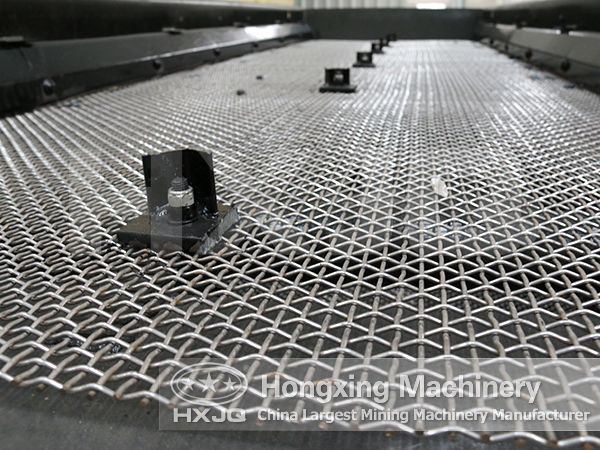

Mesh: Use the composite stainless steel mesh that reaches the state standard .
The use and maintenance instruction of vibration motor are shown on the manual.
Seat motor sets: standard type (motor is installed under the screen box) sieve machine's motor sets seat is movable, before using, you should connect screws tightly, especially before the new screening machine trial, you must repeatably tighten it the first three days, so as not to loose it and cause accident.
Damping spring: to prevent vibration from transmitting to the ground, at the same time, it can support the full weight of the screen box. Once installed, the spring must be perpendicular to the ground.
Bracket: It is composed of channel supporting the vibrating screen body. The pillars must be perpendicular to the ground, and it should be parallel to each other below the channel of the two pillars.

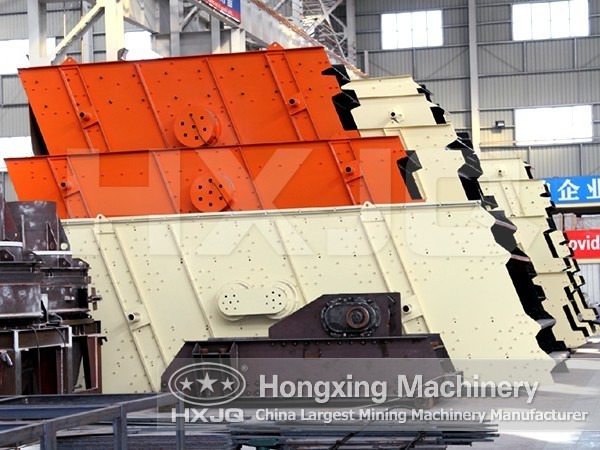

Vibrating screen is mechanical vibrating equipment driven by electric motors. Circular vibrating screen or round vibrating screen refers to the vibration sieve whose vibrator makes round movement when working.

Vibrating Screen

Circular vibrating screen is new and efficient sieve shaker machine, generally with multiple layers of meshes in order to improve screening efficiency. Round vibrating screen vibrates the body driven by the eccentric shaft. Circular vibrating screen is firm and reliable and durable, and it has features of easy maintenance, low vibration noise, simple and safe operation and so on. Therefore, vibrating screens are widely used in building materials, chemicals, transportation, energy and other industries.

Working Principle

During the operation of sand screening machine, the two motors make synchronous reverse rotation ensure the vibration exciter generate exciting force, forcing the screen body to drive the screen to make vertical movement and make sure the periodic thrown forward in a range of the materials on the screen under the action of vibrating force, thus to complete the screening operation of the materials. The sand screening machine is suitable for sieving sand in the quarry. It also can be used for the products classification of coal, ore dressing, building material, power and chemical industry, etc.

Parameters type

Model Sieve
layer
Sieve
area
(m²)
Mesh
size
(mm)
Max.
feeding
size
(mm)
>Processing
 capacity
(m³/h)
Vibrating
Frequency
(r/min)
Double
amplitude
(mm)
Motor
power
(kw)
Sieve
obliquity
(°)
Sieve
specification
(mm)
>Dimensions
(L×W×H)
(mm)
2YK1225 2 6 4-50 200 8-60 800-970 8 6P   5.5KW 20 1200×2500 2930×1860×870
3YK1225 3 9 4-50 200 10-70 800-970 8 6P   5.5KW 20 1200×2500 3070×1860×1210
2YK1230 2 7.2 4-50 200 12-78 800-970 8 6P   7.5KW 20 1200×3000 3430×1860×870
3YK1230 3 10.8 4-50 200 13-80 800-970 8 6P   7.5KW 20 1200×3000 3570×1860×1210
2YK1237 2 8.88 4-50 200 15-86 800-970 8 6P   7.5KW 20 1200×3700 4050×1860×870
3YK1237 3 13.32 4-50 200 16-90 800-970 8 6P   7.5KW 20 1200×3700 4270×1860×1210
2YK1535 2 10.5 5-50 200 20-125 800-970 8 6P   11KW 20 1500×3500 4120×2210×1230
3YK1535 3 15.75 5-50 200 21-125 800-970 8 6P   11KW 20 1500×3500 4360×2210×1610
2YK1545 2 13.5 5-50 200 22-150 800-970 8 6P   11KW 20 1500×4500 5120×2210×1230
3YK1545 3 20.25 5-50 200 22-150 800-970 8 6P   15KW 20 1500×4500 5360×2210×1610
4YK1545 4 27 5-50 200 22-155 800-970 8 6P   15KW 20 1500×4500 5930×2210×2060
2YK1548 2 14.4 5-50 200 22.5-162 800-970 8 6P   11KW 20 1500×4800 5420×2210×1230
3YK1548 3 21.6 5-50 200 22.5-162 800-970 11 6P   15KW 20 1500×4800 5660×2210×1610
4YK1548 4 28.8 5-50 200 22.5-162 800-970 8 6P   18.5KW 20 1500×4800 6230×2210×2060
2YK1848 2 17.28 5-80 200 25-206 750 8 6P  18.5KW 20 1800×4800 5420×2550×1420
3YK1848 3 25.92 5-80 200 32-276 750 8 6P   18.5KW 20 1800×4800 5660×2550×1780
4YK1848 4 34.56 5-80 200 32-285 750 8 6P   22KW 20 1800×4800 6290×2550×2160
2YK1854 2 19.44 5-80 200 32-312 800-970 8 6P   22KW 20 1800×5400 5960×2550×1420
3YK1854 3 29.16 5-80 200 32-312 800-970 8 6P   22KW 20 1800×5400 6260×2550×1780
4YK1854 4 38.88 5-80 200 32-336 800-970 8 6P  22KW 20 1800×5400 6830×2550×2160
2YK2160 2 25.2 5-100 200 50-475 970 8 6P   30KW 20 2100×6000 6720×2840×1530
3YK2160 3 37.8 5-100 200 50-475 970 8 6P  30KW 20 2100×6000 7030×2840×1910
4YK2160 4 50.4 5-100 200 50-497 970 8 6P   37KW 20 2100×6000 7300×2840×2380
2YK2460 2 28.8 5-100 200 65-550 970 8 6P   30KW 20 2400×6000 7020×3140×1530
3YK2460 3 43.2 5-100 200 70-620 970 8 6P   37KW 20 2400×6000 7300×3140×1910
4YK2460 4 57.6 5-100 200 80-680 970 8 6P   45KW 20 2400×6000 7600×3140×2380
2YK2870 2 39.2 5-100 200 120-680 750 8 8P   22×2KW 20 2800×7000 7600×4320×1620
3YK2870 3 58.8 5-100 200 180-720 750 8 8P   22×2KW 20 2800×7000 7800×4320×2120
2YK3072 2 43.2 5-100 200 200-700 750 8 8P   22×2KW 20 3000×7200 7800×4520×1750
3YK3072 3 64.8 5-100 200 230-800 750 8 8P   22×2KW 20 3000×7200 8000×4520×2300
