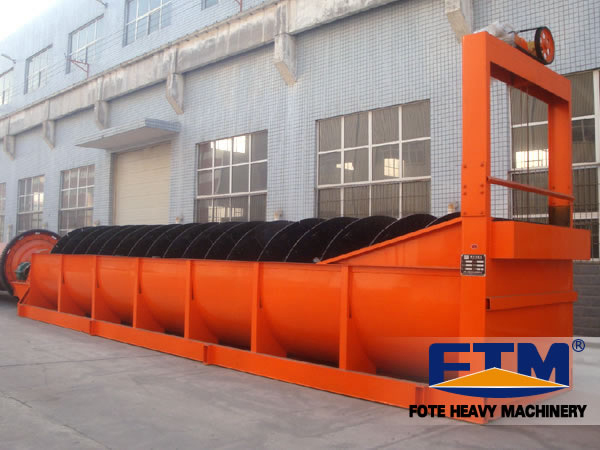

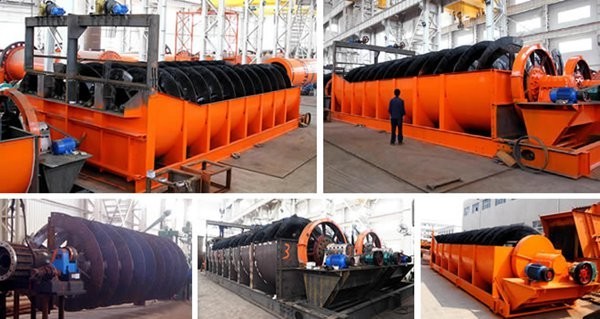

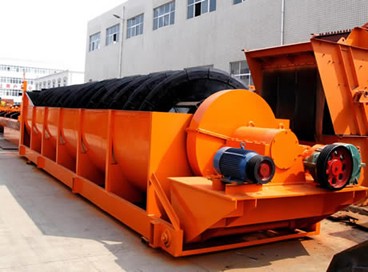

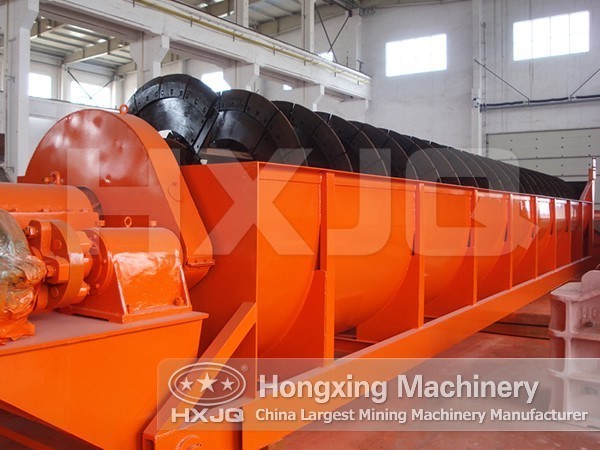

Spiral Classifier

    supplyability: 1 Set/Sets per

    Weekprice: 4,500 - 185,500

    Port: Qingdao,Tianjin,Shanghai or others(as requested)

    Type: Sprial Separator

    Application: High-weir spiral classifier is mainly used to classify the granules in the ore pulp in metal processing and to deslime,dehydrate in ore washing process.

Spiral Classifier

The spiral classifier produced by Hongxing Machinery is widely used for separating the sand in the ore beneficiation plant to equip with ball mill to form a closed cycle, for classifying ore sand and fine silt in the gravity separation plant, for the granularity classification of the pulp in the metal ore beneficiation flow and for removing the slime and water in the ore washing process. Hongxing spiral classifier has the advantages of simple structure, reliable working condition and convenient operation.

Spiral Classifier

Hongxing spiral classifier is a kind of grading equipment, which is also can be called screw classifier and screw washing machine,used to the mechanical grading by means of the spiral that will push the materials to the upper to be discharged. Hongxing spiral classifier can filter the powdery materials in the milling equipment and the coarse materials will be screwed into the feeding inlet by the flight and the the filtered fine materials will be discharged from the overflow tube.

Features:

1. Hongxing spiral classifier is featured with simple structure, reliable performance and easy operation;

2. Hongxing screw classifier has wide grading range and it has strong adaptability to the different nature, different proportion, different grain shape and different granularity of the materials;

3. Hongxing screw washing machine has high accuracy in classification and the classification efficiency is high.

Working Principle:

Spiral classifier is a type of classifying machine that classifies materials based the principle that the solid particles with different sizes and proportions have different falling speed in the liquid, and fine ore particles float in the water and coarse ore particles sink to the bottom of the chute and the coarse ore particles are pushed by the spiral to the upper part and discharged. Hongxing spiral classifier is able to filter the powdery particle crushed by the grinding mill and whirl the coarse particles with the spiral to the feeding mouth of the grinding mill and discharge the filtered fine particles.

Spiral separator is large grading equipment. This machine classifies materials according to the different sizes and proportions of solid particles.

Classifier

The structure of screw classifier is very simple. It is composed of a large shell and screwy device. The flights rotate slowly driven by the motor during working. Then the heavy materials sink into the bottom and the light materials float on the water. The two parts are separated after grading.

Spiral classifiers have many types after years of developing. The are some common types: high weir spiral washer, submerged spiral separator, single rotary separator, and double screw separator. In addition, double spiral classifier has a same structure with single spiral classifier except that double spiral classifier has two spiral slices and greater capacity per unit time.

Parameters type

Model Spiral
Diameter
(mm)
Trough
Length
(mm)
Spiral
rotate
speed
(r/min)
Processing
capacity(t/d)
Motor
Power
(kw ≤)
Dimensions
(mm≤)
Total
weight
(t)
Sand
-return
Overflow For
driving
For
lifting
Length Width Height
FG-3 300 3000 12-30 80-150 20 1.1 ---- 3850 490 1140 0.7
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480 1.9
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820 3.1
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380 4.9
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680 6.2
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110 15.8
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920 17.6
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080 22.1
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890 30.7
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490 20.5
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340 28.5
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490 35.5
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640 48.7
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970 26.8
FC-24 14130 6800 490 18.5 4 16580 2930 7190 41.0
2FG-24 9130 13600 1160 30 6 12710 5430 5690 45.8
2FC-24 14130 13700 910 37 8 17710 5430 8000 67.9
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350 73.0
2FC-30 14300 23300 1410 ---- ---- 17091 ---- 8680 84.8
Please enter your questions, such as ball mill: the type of raw material, feed size, capacity, specifications and the final product size, we will answer your questions as quickly as possible according to your needs. Now purchasing our products will enjoy the lowest discount, please call our hotline: 0086-0371-63313738
