Gravity Spiral Chute

    supplyability: 10 Set/Sets per

    Weekprice: 1,400 - 4,200

    Port: Qingdao,Tianjin,Shanghai or others

    Type: Sprial Separator

    Application: Ore, ore beneficiation

Gravity Spiral Chute

The gravity spiral chute is made of light chlorine plastic and it is of anti-rust and water proof.  The spiral chute is used for adjusting feeding size of the granularity.

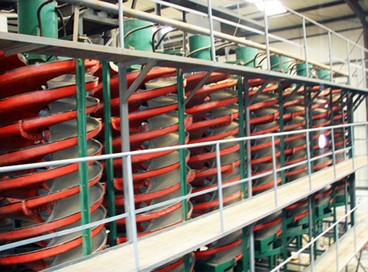

gravity spiral chute


With simple structure and large capacity, the gravity concentrator is of good performance. Chute is one part of the bevel process sorting, the pulp is in certain tilt slant  and it will be pushed by stratified flow in order to be layered.  The light mineral discharged is called fine concentrate and the heavy minerals which are discharged from the bottom of the slot bottom is yielding tailings.

Working principle:

When using the chute when the vertical line need to be calibrated, the ore is sent to the feed mouth. adding additional water. After adjusting the concentration of mineral by adding additional water. The paddle streams down from the high place. In bevel velocity will produce a centrifugal force. Under the action of gravity and centrifugal force, ore and sand will be separated from  each other. The tailings then flow into the tailings and the sand is drain away by pump to complete the whole process of the beneficiation.

Parameters type

Model Processing
capacity
(t/h)
DL2000 15-40
DL1500 8-16
LL1200 4-6
LL900 2-3
Please enter your questions, such as ball mill: the type of raw material, feed size, capacity, specifications and the final product size, we will answer your questions as quickly as possible according to your needs. Now purchasing our products will enjoy the lowest discount, please call our hotline: 0086-0371-63313738
