Rod Mill

    supplyability: 10 Set/Sets per Monthprice: 1,000 - 100,000

    Port: Qingdao,Tianjin, Shanghai or others

    Type: Ball Mill

    Application: Ore , bauxite , mining ,grinding clinker

Rod Mill


The rod mill ,which also can be called rod grinding machine,rod grinder,is formed with feeding part, charging part, cylinder, discharge part and other working part, and bearing part, transmission part, electrical appliance part and foundation part.

 Cylinder is made of steel plates, and the cylinder body often uses waveforms, stepped or wedge liner. There are discrepancy holes on the upper cylinder, which can be used to observe the wear of lining board and grid board, as well as removing the grinding body to replace worn lining board and grid board.

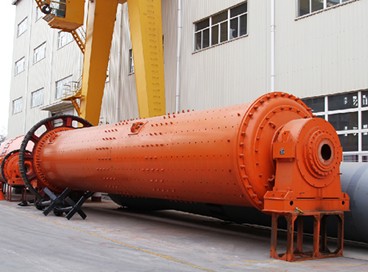

Rod Mill

Working principle:

The motor of limestone rod mill drives the cylinder to rotate through speed reducer, and the crushed ore and steel bars in cylinder will be elevated to a certain height by liner through the force of centrifugal and friction when the cylinder is rotating, and then rain down to crush the ore material through gravity. The crushed products will be discharged through the discharging part. The feeder feeds continuously and evenly, and the ore will be fed into the limestone rod mill continuously and evenly by the joint feeder, finally, the crushed products will be discharged continuously from the limestone rod mill. Limestone rod mill is a kind of grinding equipment can continuously work 24 hours per day.

ball mill


The pin crusher can be widely used in the processing of quartz sand, dolomite and monazite, ore-dressing of non-ferrous metals, ferrous metals and non-metal, the first-stage ore milling of artificial stone sand, dressing plant, chemical plant and power sector, and the grinding of the chemical industry, building materials and other mineral materials.

Rod grinding machine is a mining machine similar to ball mill. Rod mill is mainly used in mineral processing industry. It can grind different hardness stones. The materials that can be triturated are marbles, limestone, granites, etc.

Rod mill is called rod grinder because of the wear-resistant steel bars fitted in. Grinding rod mill achieves a larger reduction ratio and more uniform fineness with steel rods instead of the ball. Besides, rod mill can avoid the phenomenon that materials are over crushed.

MBS Rod mill is a new type mill produced by our company according to the need of domestic market. M means mill, b means steel rod, s represents wet, and g represents dry. This type of rod grinder includes two types: peripheral discharge rod mill and middle discharge rod mill. MBS rod mill are widely used in the industries which require products to have uniform size and not to over be crushed, such as, metal and non-metal mines, water conservancy, glass and building industries, artificial sand making industry etc. to crush kinds of ores, stones , artificial sand making industry etc.

Parameters type

Shell Specifications (mm)
Shell rotation speed
Feeding size
Discharging size
Processing capacity
Total weight
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5500
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6100
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 16800
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 29000
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 34800
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 86000
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 137000
Please enter your questions, such as ball mill: the type of raw material, feed size, capacity, specifications and the final product size, we will answer your questions as quickly as possible according to your needs. Now purchasing our products will enjoy the lowest discount, please call our hotline: +86-371-67833171
