Ore Concentrate

    supplyability: 20 Set/Sets per Monthprice: 1,983 - 61,800

    Port: Qingdao,Tianjin,Shanghai or others(as requested)

    Type: Concentrate

    Application: ore concentration plant, peripheral driving thickener, ore concentrate

Ore Concentrate

Overview:

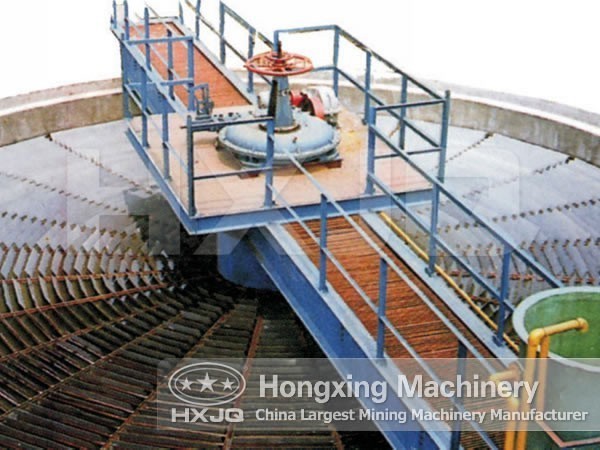

The ore concentrate is generally composed of concentrated tank, stands, gearings, lifting device, feeding devices, discharge devices, signal safety devices and other components.Ore concentrate is not simply depositing equipment, but a new type of sludge dewatering equipment with mud layer filtering characteristics. The main features of ore concentrate work is to add a certain amount of flocculant in the pulp to be concentrated to get flocculation from particles in slurry, speed up the pace of settlement, thus achieve the purpose of improving the concentrated efficiency.

The commonly used ore concentrate is high efficiency concentrator, also known as thehigh efficiency thickner.

Characteristics:

Adding with flocculant to increase size of settled solid particles, so as to speed up the settlement; installed with tilt plates to reduce distance of settling particles, so as to increase settlement area; playing the role of filtrating, compression, and improved effectiveness of capacity of mud deposited thick layers-flocculation; equipped with full automatic control facilities.

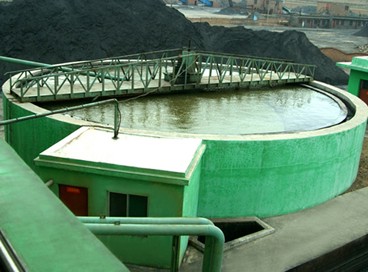

high efficiency concentrator

Application:

The ore concentrate is suitable for dehydration processing for factory's concentrated ore and tailings, and widely used for processing sludge, waste water, solid waste, etc. in metallurgy, mining, coal, chemical industry, building material, environmental protection and other sectors, which has great importance of improving the backwater utilization, transportation concentration, as well as protecting the environment.

Ore concentrate is composed of round thickening tank and scraper two major parts. High efficiency concentrator is typically used to process tailings, also be used for sewage treatment. Sometimes ore concentrate is also used to regulate pulp concentration in order to improve flotation efficiency.

The main working principle of high efficiency concentrator is that, suspended solids in the pool slowly sink under the action of gravity, so the upper pulp is clarified water which will be discharged through the overflow port; while solid particles of the sediment will be sank to the bottom and scraped into the discharge port by scrape for discharging.

Parameters type

Specification Concentration pond (m) Deposit square(m2) Harrow part Motor Processing capacity (t/d) Total weight(t)
Model Specification Inner diameter Depth Pond degree Method Height(m) Rotation time(min/r) Driving Lifting
NZS-1 Φ1.8m 1.8 1.8 2.54 Manual 0.16 2 Y90L-6 1.1KW ---- 5.6 1.9
NZS-3 Φ3.6m 3.6 1.8 10.2 Manual 0.35 2.5 Y90L-6 1.1KW ---- 22.4 4.3
NZS-6 Φ6m 6 3 28.3 Manual 0.2 3.7 Y90S-4 1.1KW ---- 62 10.7
NZSF-6 Φ6m 6 3 28.3 Manual ---- 3.7 Y90S-4 1.1KW ---- 62 5.1
NZ-9 Φ9m 9 3 63.6 Auto 0.25 4.34 Y132S-6 3KW XWD0.8-3 0.8KW 140 8.5
NZS-9 Φ9m 9 3 63.6 Manual 0.25 4.34 Y132S-6 3KW ---- 140 7.5
NZS-12 Φ12m 12 3.5 113 Manual 0.25 5.28 JTC752A-44 5.2KW ---- 250 11.1
NZ-15 Φ15m 15 4.4 176 Auto 0.4 10.4J JTC752A-44 5.2KW Y112M-6 2.2KW 350 26.0
NZ-20 Φ20m 20 4.4 314 Auto 0.4 10.4 Y100L1-4 5.2KW Y112M-6 2.2KW 960 28.9
NZ-30 Φ30m 30 7.165 707 ---- 0.61 13.7 Y672A-44 5.2KW YCJ132-S 1.5KW ---- 36.6
NZS-45 Φ45m 45 4.633 1590 Manual ---- 20 Y672A-44 5.2KW YCJ160-S 2.2KW 515 54.4
NT-15 Φ15m 15 3.5 177 ---- ---- 8.4 Y132M2-6 5.5KW ---- 390 12.6
NQ-18 Φ18m 18 3.5 255 ---- ---- 10 Y132M2-6 5.5KW ---- 560 11.6
NQ-24 Φ24m 24 3.4 452 ---- ---- 12.7 Y160M-6 7.5KW ---- 1000 26.6
NQ-30 Φ30m 30 3.6 707   ---- 16 Y160M-6 7.5KW ---- 1570 30.9
NJ-38 Φ38m 38 4.9 1134 ---- ---- 10-25 JZT252-4 11KW Y160M-6 7.5KW 1600 63.3
NT-45 Φ45m 45 5.05 1590 Auto ---- 19.3 Y160L-6 11KW ---- 2400 66.8
NTJ-53 Φ53m 53 5.07 2202 ---- ---- 23.18 Y180L-6
15kw
---- 6250 89.1
NT-100 Φ100m 100 5.65 7846 ---- ---- 43 Y180L-6 15KW ---- 3030 214.9
