Stirring Tank

    supplyability: 3 Set/Sets per

    Weekprice: 9,889 - 65,325

    Port: Qingdao, Tianjin, Shanghai or others(as requested)

    Type: Mixer

    Application: Qingdao,Tianjin,Shanghai or others(as requested)

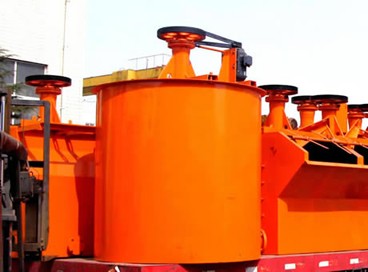

Stirring Tank

The stirring tank, also known as bucket mixer ,mixing barrel ,agitation vat or mixing vat , is equipment to fully mix pharmaceutical and pulp before the flotation process, used for a variety of metal ores, as well as other non-metallic minerals. At the same time, it also plays a role of sand pump and water pump, overflow slurry.

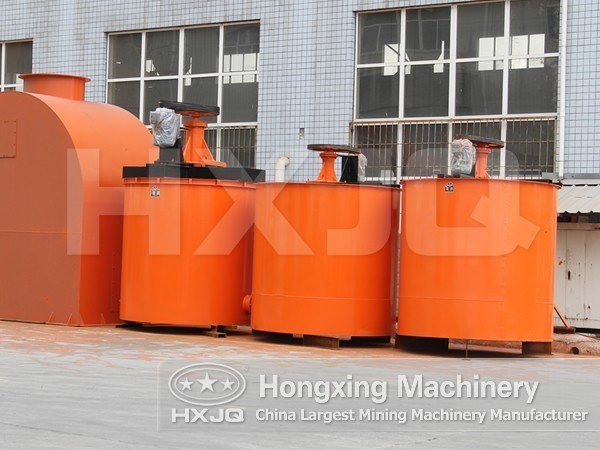

stirring tank

Application scope

Stirring tank is widely used to deal with mineral mud, waste water and waste residue in metallurgy, mining, coal, chemicals, building materials, environmental protection and other departments, having a great significance in improving the backwaters utilization and the concentration of the bottom flow conveying as well as protecting environment.

Structural features

Small footprint and light weight;
Easy installation and disassembly;
Can be adjusted the up, down, left and right positions, and the tilt angle within a predetermined range as needed.
High stirring efficiency, smooth operation, low noise and long life.

Instructions for use

1,Tighten the bolts in pump body parts before using the machine; rotating shaft to check the flexibility of pump wheel, and then start running mixer;
2, Wearing parts: impeller, the stator;
3, Keep inside mixer clean especially in winter to extend the life.

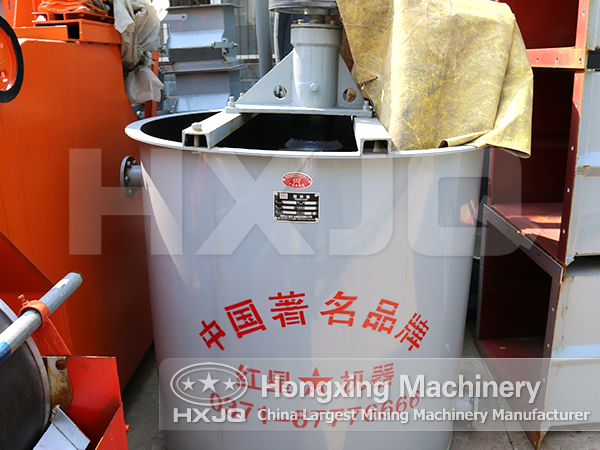

Stirring tank is the necessary equipment in beneficiation process, mainly used for mixing ore pulp and agentia before the flotation operation, and stirring tank can also be called  bucket mixer, mixing barrel, mixing vat or stirring tub.

Aggregate mixer rotates impeller driven by the motor, adding the pulp and potions before starting it, and the impeller is with a stirring bar. In the course of rotation of the impeller, the potions and pulp mix thoroughly. Bucket mixer can also be used for stirring other materials.

Parameters type

Category Specification
 Model
Dimensions Effective
cubage(m³)
Rotate
speed(r/min)
Motor
power
(kw)
Dimensions
(L×W×H)
(mm)
Total
weight
(kg)
Diameter
(mm)
Height
(mm)
Agitating
 tank
XB-10×10 1000 1000 0.58 390 1.5 1130×1130×1521 1050
XB-12×12 1200 1200 1.18 390 2.2 1130×1330×1721 1160
XB-15×15 1500 1500 2.2 280 3.0 1750×1640×2190 1270
XB-20×20 2000 2000 5.6 210 5.5 2380×2160×2850 1700
XB-25×25 2500 2500 11.2 190 7.5 2990×2720×3540 3500
XB-30×30 3000 3000 19 140 18.5 4030×3270×3010 5200
XB-35×35 3500 3500 29 230 30 3920×3740×4970 6630
XB-40×40 4000 4000 45 210 37 4520×4320×5570 7830
Lifting
type
XBT-10×15 1000 1500 1 510 2.2 1130×1130×2070 1250
XBT-15×20 1500 2000 2.9 400 4 1636×1768×2785 1677
XBT-20×20 2000 2000 5.6 312 11 2180×2220×3015 3100
High-
efficiency
 leaching
 tank
XF-20×20 2000 2000 7.07 82.5 1.5 2032×2032×3595 2400
XF-25×30 2500 3000 13.5 57.6 2.2 2532×2532×4152 3670
XF-30×30 3000 3000 22.97 50.0 2.2 3180×3180×4673 5340
XF-35×40 3500 4000 35.6 41.0 4.0 3685×3685×5314 7140
XF-40×45 4000 4500 52.78 33.5 4.0 4185×4185×5814 9300
XF-45×50 4500 5000 74.75 33.5 5.5 4685×4685×6466 10500
XF-50×56 5000 5600 102.1 30.6 5.5 5185×5185×6975 12300
XF-55×60 5500 6000 135.4 24.4 7.5 5670×5670×7569 13500
