Bucket Elevator

    supplyability: 20 Set/Sets per

    Weekprice: 1,250 - 5,590

    Port: Qingdao,Tianjin,Shanghai or others

    Type: Hoist conveyor

    Application: Stone conveying, rock conveying

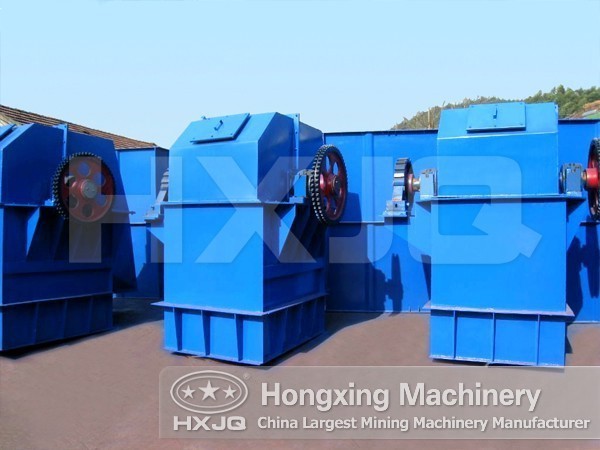

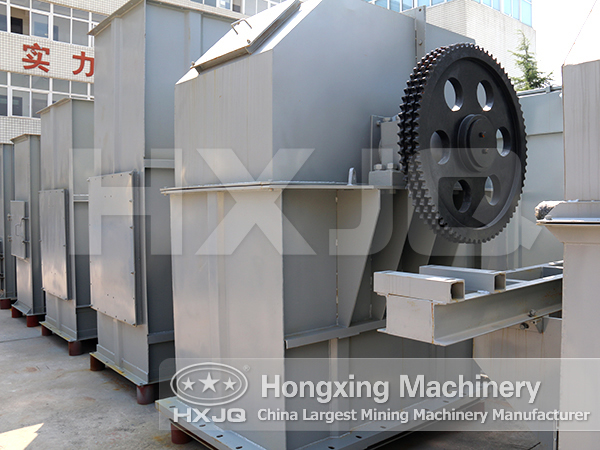

Bucket Elevator

Bucket elevator is used to send granular and bulk materials from low to high, and the hopper of bucket elevator can be individually designed depending on the shipping materials. So, bucket hoist is also called elevator bucket, hoist bucket, hoist conveyor, bucket type lifter or plate chain bucket elevator.

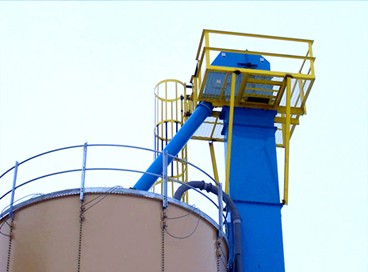

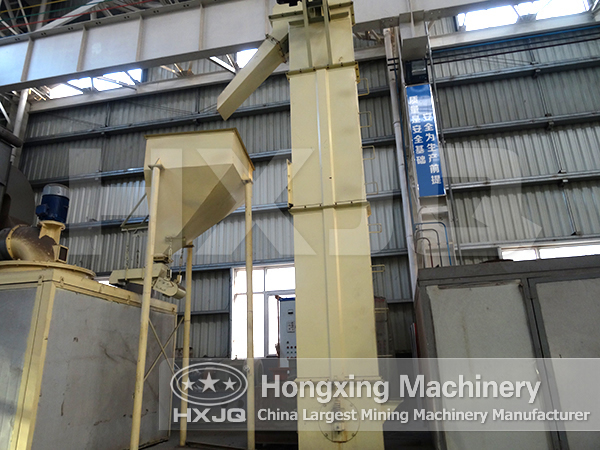

Bucket Elevator

The hopper of bucket elevator has a variety of shapes and models. According to the different connectors, bucket conveyer can be divided into ring-type, chain-type and belt-type.

Bucket elevator is one of the essential equipment in flour mill production line, and it can also be used to support ore-dressing production line.

Bucket elevator, which is also known as the bucket conveyor or bucket hoist, is used for the vertical lifting of the materials that have been crushed such as the limestone, coal, gypsum, clinker, dry clay and other granular materials as well as the powdery material such as the raw material, cement, coal and other materials. The traction component of the bucket elevator includes the ring chain, plate chain and tape and other several types. The structure and manufacturing of the ring chain is relatively simple and the connection of the hopper is also very strong. When transporting the abrasive material, the wear of the chain is small, but its weight is heavy. Plate chain has strong structure, light weight and it can be applied to the hoist with large capacity, but the hinged joints is easy to get worn. The structure of the tape is relatively simple, but it is not suitable for conveying abrasive materials. As for the ordinary tape, the temperature  of the materials does not exceed 60 ° C, the wire cable tape allows the material temperature to be 80 ° C, the heat-resistant tape allows the material temperature to reach 120 ° C.

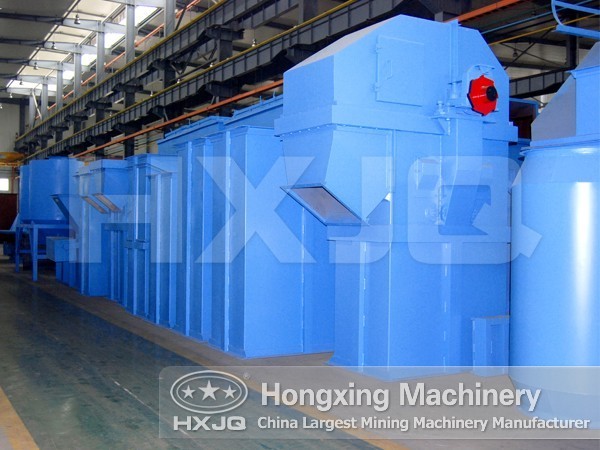

Bucket Elevator


Features:

1. The driving power is small; the intensive layout of large capacity hopper;
2. It has the wide lifting range and has few requirements of the types and characteristics of the materials;
3. The operation is reliable; advanced design principles and processing methods ensure the reliability of machine operation;
4. The lifting height is high; the operation is stable;
5. It has long service life; it rarely occurs the extrusion and collision phenomena between the materials.


Parameters type

Technical parameters of ring chainbucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Pitch of buckets
(mm)
Motor prower
(kw)
TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45

Technical parameters of wire belt bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Bucket Volume
(L)
Motor prower
(kw)
TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132

Plate chain bucket elevator

Specification Max.lifting height
(m)
Max.lifting capacity
(m³/h)
 Percentageallowed
(%)
Pitch
(mm)
Motor power
(kw)
10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132
