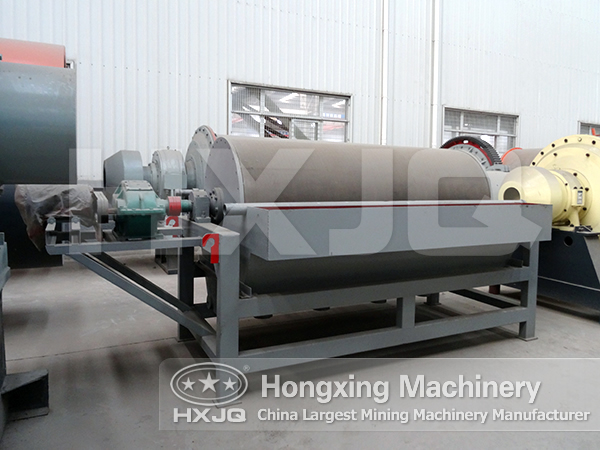

Magnetic Separator

    supplyability: 7 Set/Sets per

    Weekprice: 3,975 - 59,467

    Port: Qingdao,Tianjin,Shanghai or others

    Type: magnetic separator

    Application: separating iron ore, coal

Magnetic Separator

Overview of Magnetic Separator

Magnetic separator also can be called magnetic drum separator,is can be divided into dry magnetic separator and wet magnetic separator. The magnetic separator is the most widely used mining machine with advantages of simple structure, easy to operate, easy to maintain and so on.

 The wet magnetic separator is widely used in iron powder removal, and magnetic separator is also widely used in resource recovery, timber industry, mining, ceramic, chemical, food and so on. The wet magnetic separator is suitable for wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials with granularity below 3mm, and the iron removal of coal, non-metallic mineral, building material and other material.

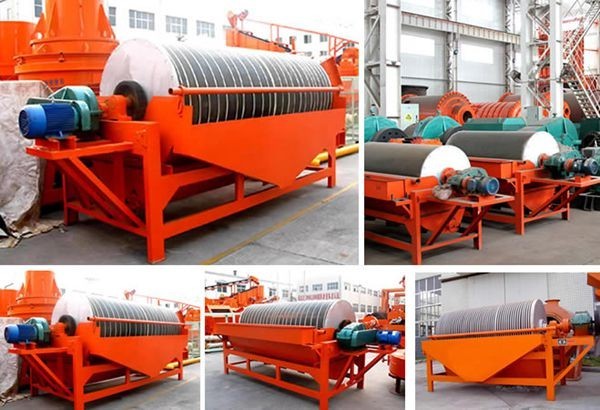

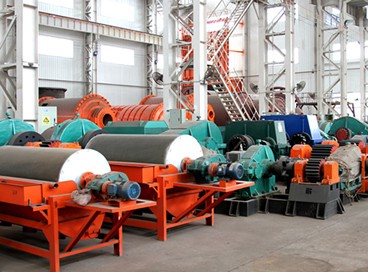

magnetic separator

Structure of Magnetic Separator

The wet magnetic separator is mainly composed of drum, roller, brush roller, magnetic system, tub and transmission parts. Cylinder is rolled welding by 2-3 mm stainless steel plate, and the end cover is aluminum casting connected by stainless steel screw and barrel. Motor regulates motor speed through the reducer, which drives the cylinder and magnetic roll do rotary motion. Magnetic system is open, installed in inside cylinder and all bared magnetic. Magnetic block of magnetic drum separator is installed in the plate of yoke by stainless steel bolt, and the shaft of the yoke is out of the barrel. The end shaft is fixed with turn arm, which can adjust the magnetic system angle. The working area of trough is made up with stainless steel, and the frame and other parts of the cell body is welded with ordinary steel.

Performance Features of Wet Magnetic Separator

1. The coarse separation of the lean iron ore after coarse crushing or medium crushing eliminates the barren rocks such as surrounding rock, improves the taste of the iron ore and eases the load of the next procedure.

2. Magnetic separator and magnetic drum separator can be used in the closed circuit firing work for restoring the hematite, and it can separate the rawore that are not fully restored and return it for firing again.
3. In the ceramic industry, wet magnetic separator can remove the iron mixed in the petuntse and improve the quality of the ceramic product.
4. Magnetic separator can also be used in coal firing, sand making, refractory and other industries that need deironing.

Working Principle of Magnetic Drum Separator

The pulp flows into cell body from the pulp box, and under the water flow of the feeding spray pipe, the mineral grain will go into the feeding area of the cell body in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder.

Magnetic separator is common used magnetic separator machine, especially in the process of choosing iron and manganese, it's one of the indispensable equipments. China magnetic separator can be divided into dry magnetic separator and wet magnetic separator according to the dry and wet degree for processing the materials.

Dry magnetic separator can divide the minerals into magnetic material and nonmagnetic. The magnetic drum separator is used in choosing hematite, siderite, pyrite, etc. Some ores should be roasted before dressing by magnetic separator.

The magnetic separator made in China accounts for a large proportion in the world market. Henan is an area gathered a lot of magnetic separation manufacturers, one of which called Hongxing, owning the most complete magnetic separation machine. Welcome friends from all over the world to come and visit our factory.

Magnetic drum separator is an important kind of magnetic separating equipment. The common type of magnetic drum separator is wet magnetic separator, which needs to add water in the process of magnetic separation. Thus the wet magnetic separator is mainly used for the separation of pulp.

Parameters type

Model Shell diameter
(mm)
Shell lenght
(mm)
Shell rotation
speed(r/min)
Feeding size
(mm)
Processing capacoty
(t/h)
Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
