Ball Mill

    supplyability: 10 Set/Sets per Monthprice: 6,500 - 90,654

    Port: The choice of the port is up to the customers!

    Type: Ball mill

    Application: Grinding mill,grinding ball

Ball Mill

Ball mill, which can also be called grinding mills, ball grinder or grinding ball, is the vital machine for crushing the materials after they are primarily crushed. Ball mills can be divided into many types, such as tube mill, cement ball mill, superfine lamination grinding miller, horizontal ball mill, energy-saving ball mill, overflow ball mill, ceramic ball mill and lattice ball mill.



Ball mills are suitable for grinding all kinds of ores and other materials in such industries as ore beneficiation, building material and chemistry. The ore grinding methods can be divided into two types: dry type and wet type and according to the difference in ore discharging way, ball mills can be divided into lattice type and overflow type.

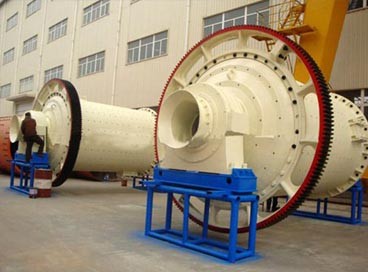

ball mill

Ball mill has very important position in the industrial production, especially is used for ore grinding in the ore beneficiation plant. Grinding mills are composed by the horizontal cylinder, feeding mouth, discharging mouth and the grinding head. The cylinder is made of steel plant, and inside the cylinder there fills steel balls. On the internal walls of the cylinder, there are equipped with lining board.

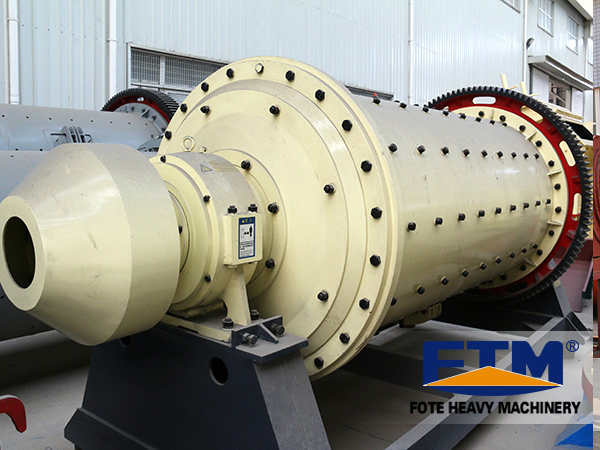

ball mill

Features:

Grinding mills is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance. This machine has stable operation and reliable performance.

According to the material types and the ore discharging methods, it can be divided into dry type ball mill and wet type lattice ball mill.

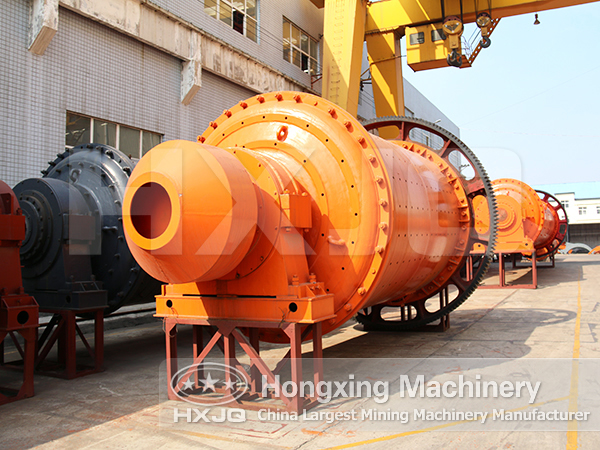

Ball Mill

Working Principle:

Materials evenly go into the first cabin of the ball mill machine through the feeder machine, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

The industrial grinding machines produced by Hongxing Machinery are sold to many countries and areas in the whole world. Welcome to our company for visit and purchase.

Ball mill is ore dressing equipment, mainly used for crushing bulk ore materials into ore pulp, for further separating operations.

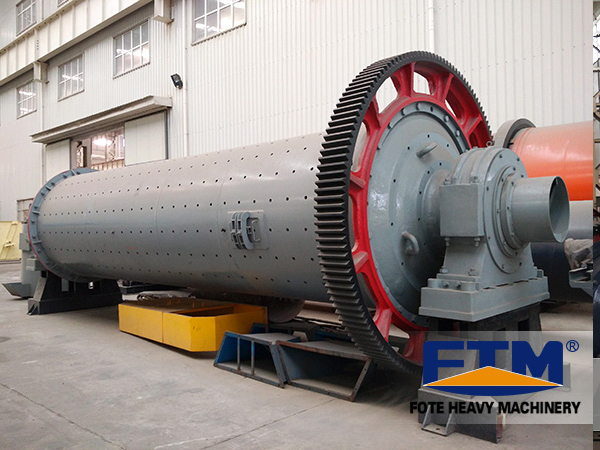

Ball Mill

The grinding operations of grinding mills are done in the cylinder, and the internal ball grinding mill is filled with steel balls and ores. Ball grinder rotates driven by electromotor, and during the rotating, the ore and steel balls will be sent to a certain height and then fall down freely. Ore in the cylinder of ball mill grinder would be crushed violently by steel balls mounted on cylinder, so as to grind ores and other materials.

Ball mill machine or industrial grinding machines can be divided into overflow grinding ball and grid grinding miller according to discharging way. The overflow grinding ball makes overflow discharging from its hollow shaft, while the grid grinding miller discharges from the scallop hole on the grid plate.

HXJQ-China Ball Mill Manufacturer

Hongxing Machinery, a professional manufacturer of mining equipment, produces various types of ball mills, rod mills and other grinding equipment. Hongxing Machinery is a large-scale ball mill manufacturer in China, with a professional ball mill production team, large ball mill production workshop, as well as professional personnel in sales, installation and after sales.

Parameters type

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
Please enter your questions, such as ball mill: the type of raw material, feed size, capacity, specifications and the final product size, we will answer your questions as quickly as possible according to your needs. Now purchasing our products will enjoy the lowest discount, please call our hotline: 0086-0371-63313738
