Mobile Crusher

    supplyability: 1 Set/Sets per

    Weekprice: 50,000 - 1,000,000

    Port: Tianjin, Qingdao, Shanghai etc.

    Type: mobile crushing plants

    Application: limestone,granite, stone etc., all kinds of mineral.

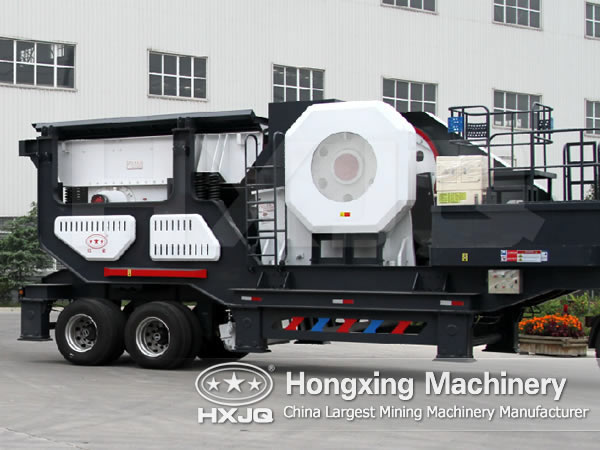

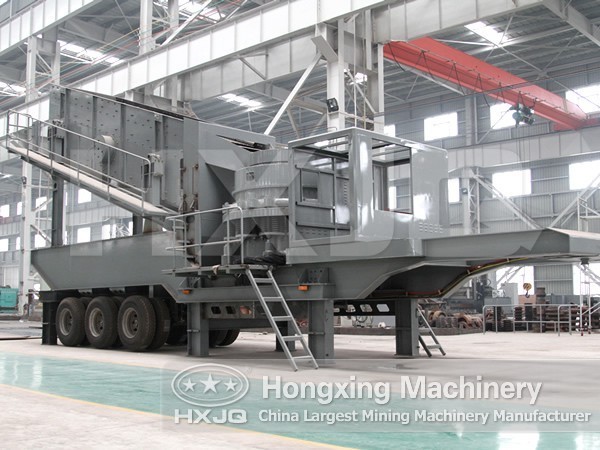

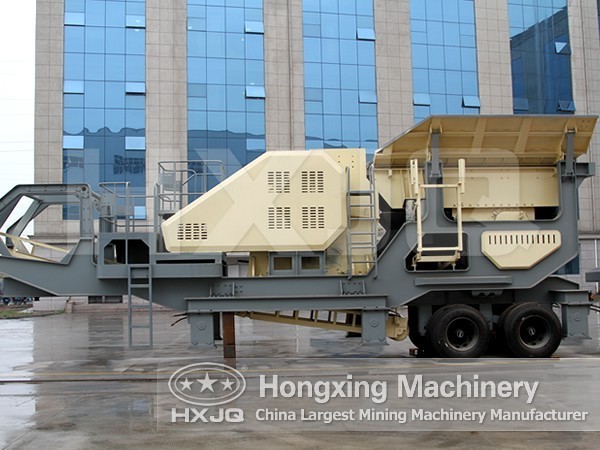

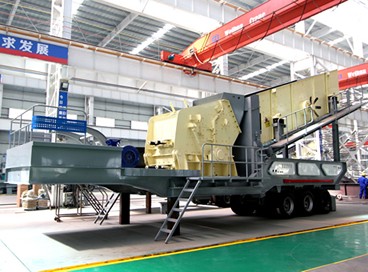

Mobile Crusher

Mobile crusher can also be called portable crusher, portable breaker,mobile crusher plant or mobile crushing plant. It is a simple stone production line which is mainly used for the material processing in metallurgy, chemistry, building material and water and electricity, and it is especially suitable to be used in highway, railway, construction, water conservancy and metallurgy.

 According to types of the raw materials to be process and the size and the requirement for the final products, different configuration types can be adopted. Its design philosophy and purpose is to stand from the point view of the customers, and eliminate the obstacles brought by the crushing site and the environment to the customers and provide customers with project operation facilities with high efficiency and low cost.

Features:

Mobile crusher has the features of reasonable matching of all levels of crushing equipment; smooth discharging of the whole production line, reliable running condition, convenient operation and high efficiency and energy conservancy. It has good mobility and can extend together with the raw materials site or construction site and has many types of combinations to satisfy the processing needs of different materials.

Mobile Crusher

Working Principle:

The movable jaw of the crusher is hung onto the mandrel and can move back and forth. When the eccentric shaft rotates, the connecting rod will move up and down, which will drive the two thrust plate to move up and down, thus driving the movable jaw of the crusher to move back and forth to realize crushing and material discharging. This crusher adopts crank dual-linage mechanism. Even though there is big stone impact force on the movable jaw, the stress on the eccentric shaft and connecting rod is not big, so that it is often manufactured to be large and medium-sized crusher to crush hard materials.

Mobile Crusher is Effective and Reliable in Construction Waste Disposal

With the acceleration of urbanization, warming of the real estate industry and the demolition and relocation and reconstruction of old and dilapidated houses, large quantities of construction waste is produced, which seriously influences the urban environment. The technology of crusher equipment has reached a certain height in the construction water disposal. Mobile crusher is integrated with crushing and screening equipment, so that it has outstanding effect in construction waste disposal and is very convenient to do that job.

The biggest features of mobile crushing station lie in integrated configuration and flexible movement. Crusher mobile is mainly composed of jaw crusher, impact crusher, mobile crusher, sand maker, vibrating screen, belt conveyor and central electric control. With the development of economic construction and rapid promotion of project construction and mine quarrying, mobile crusher welcomes the unprecedented development opportunity.

Hongxing mobile crusher can be freely driven in the rugged and complicated environment, and it is flexible and convenient and covers a small floor space. It can directly choose the working site and be put into production after it is driven to the working site. The integrated configuration of crusher mobile improves its working efficiency; at the same time, it is equipped with first-level and second-level crushing equipment, making it able to independently complete the relevant crushing and screening work. It has high working efficiency in dealing with construction waste, mine tailings and in recycling tailings, and can realize the effective recycling of resources, making it a effective and reliable crushing machine.

Hongxing Machinery constantly integrates the excellent achievements of human in various industries, and regarding the key needs in economic construction, guided by the scientific outlook on development to realize sustainable development. For the past two decades, Hongxing Machinery has taken a lead in the production of crusher equipment, and the mobile crushing station produced by our company is leading the industry in construction waste disposal, tailing recycling and major natural disaster reconstruction.

Mobile crusher or portable crusher is a small movable crushing production line. Crusher mobile includes crushing equipment, screening equipment, and transportation equipment.

Crusher Mobile

Mobile crushing machine can work with different device according to different aggregated rocks. For example, jaw portable breaker, impact portable breaker, and cone portable breaker.

Crusher portable is also called portable crushing plant and can be seen as a simple stone production line. Mobile stone crusher plant include rubber-tyred mobile crushers and
crawler mobile crushers. Rubber-tryed portable breaker can't move by itself and should be dragged to workplace by trailer. Crawler mobile crushing plant or mobile mining plant itself has power, and can move itself at work, which is widely used in open-air coal mining.

Besides, mobile stone crusher machine or portable crushing plant can be used for waste disposal and garbage crushing. Portable mining equipment or portable rock crusher can march in the workplace directly without investing infrastructure. The operation and maintenance of mobile crusher is simple and safe.

Parameters type

MOBLIE IMPACT CRUSHER TECHNICAL PARAMETERS

Model HX938F1210 HX938FW1214 HX1149F1315 HX1349HD1110 HX1349HD1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model HX938HD80 HX1149HD98 HX1349HD110 HX1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 14700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
