Cone Crusher

    supplyability: 14 Set/Sets per

    Weekprice: 2,000 - 38,500

    Port: Tianjin, Qingdao, Shanghai or others

    Type: Cone Crusher

    Application: Secondary Crushing

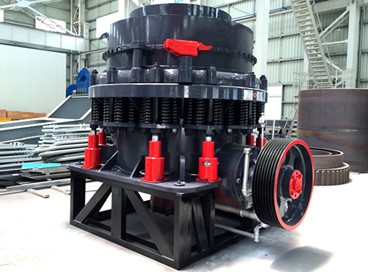

Cone Crusher

Cone crusher, which is also called cone crushers, is widely used in mine, metallurgy, construction, road paving, chemistry and silicate industry for crushing hard and medium hard rocks and ores such as iron ore, limestone, copper ore, quartz, granite and sandstone.

Cone Crusher Test Video

This series of cone crusher is suitable for crushing all kinds of ores and rocks with over-medium hardness and it has such features as reliable structure, high production efficiency, convenient adjustment and economical use. The spring protection system is overload protective device which will allow the foreign matters such as iron to go through the crushing chamber without damaging the machine. Cone crushers adopts two types of sealing, namely dry oil and water, which will separate the stone powders and lubricating oil, thus ensuring reliable work.

Cone Crusher

Working Principle:

When cone crushers begin to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

Cone crusher can be used in building material, chemical, mineral, sand production and other industries. Cone crushers can crush various medium-hard ores and stones. Cone crusher has high efficiency with low energy consumption, and its products have uniform particle size.


1. Big production capacity, stable performance.
2. Long service life of the quick-wear spare parts and low running cost.
3. The rare oil station can continuously supply oil for lubrication, thus reducing the stoppage and maintenance time.

Cone crushers have many types, such as, spring cone crusher, hydro cone crusher, and compound cone crusher. Cone crusher is advanced new crushing equipment with high-power and large crushing ratio. This machine is developed after drawing a lot of advantages of many crushing equipment, and can be used in rocks, ores, slag and refractory industries.

Cone crusher are mainly composed of rack, horizontal axis, moving cone, fixed cone, lubrication system, hydraulic system, control system etc.

China is a major exporter of cone crushers. Henan Hongxing is a manufacturer and supplier of cone crusher machine. If you want to learn more about the knowledge and price of our cone crusher, please contact with us directly.

Parameters type

Specification Model Diameter
of large
end of
Width of
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
Please enter your questions, such as ball mill: the type of raw material, feed size, capacity, specifications and the final product size, we will answer your questions as quickly as possible according to your needs. Now purchasing our products will enjoy the lowest discount, please call our hotline: 0086-371-63313738
