Jaw Crusher

    supplyability: 10 Set/Sets per

    Weekprice: 1,200 - 65,000

    Port: Qingdao, Tianjin, Sahnghai or other port requested

    Type: PE Jaw Crusher

    Application: Ore,building,chemical industry

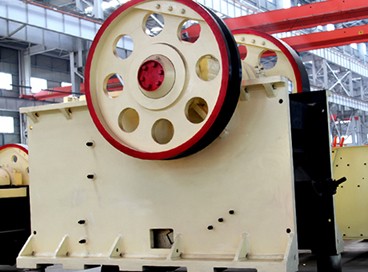

Jaw Crusher

The selection of the crusher:



Jaw crusher has cast chassis and welded chassis, and cast steel chassis is durable and it is not easily deformed, but the surface is rough and not enough beautiful, so it is suitable for crushing hard ore. Welded casing is nice, and surface is smooth  and easy to clean, also, it is suitable for the occasion with high environmental requirements, but welded chassis is easily deformed, the stiffness is not high enough, so it is more appropriate for crushing brittle material.

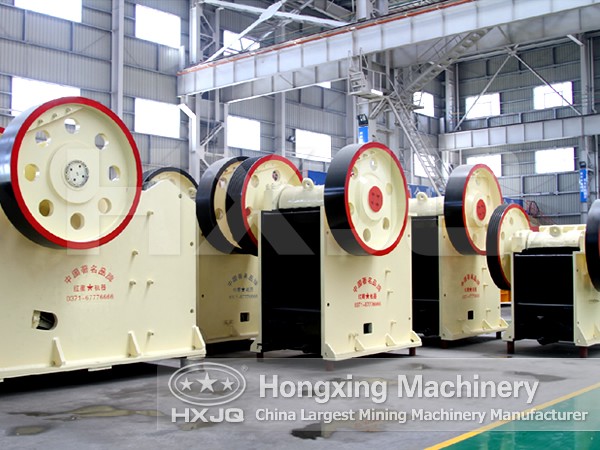

Jaw Crusher

When you choose jaw crusher, in addition to consider the scale of production, but also consider the size of the raw materials, but also consider whether other ancillary equipment capacity matches with each other.

The working principle of jaw crusher:

The jaw crusher produced by henan Hongxing crushes maerials by way of moving and extrusion type, the motor drive belt and pulley of jaw crusher make the moving jaw move up and down, when the the angle between the jaw plate and moving jaw becomes larger, and promotes the moving jaw plate close to fixed jaw plate, at the same time, the materials are crushed and grinded; when the moving jaw moves down, the angle between bracket and moving jaw plate becomes smaller,the moving jaw plate leaves the fixed plate due to the function of trolley and spring, and then the crushed materials are discharged from the mouth of crushing chamber.

The application of jaw crusher:

The jaw crusher is widely used in mining, smelting, building material, highway, railway, water conservancy, refractories and chemical industry and many other sectors,and the materials of crushing compression strength should be more than 320 MPa, . Such as pyrite stone, limestone, basalt, rock phosphate, barite, celestite, calcium carbide, coke, etc..

Jaw crusher is the first and most successful developed crushing equipment in the history. Jaw crusher machine is mainly used to primary crush materials. So far it still occupies a very important position in industrial production, especially in mining.

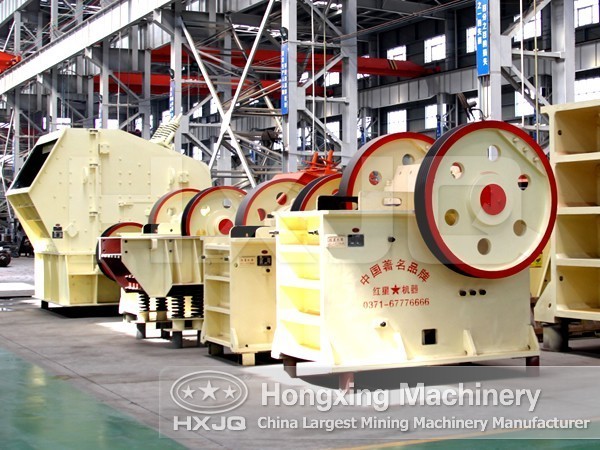

jaw crusher

Jaw crusher classification:

Jaw Crushers have two types, simple swing and complex swing. The common type is the simple swing jaw crusher, which is also named pendulum jaw crusher. The other one is the complex pendulum jaw crusher, which is also called complex swing jaw crusher. The working principle of these two crushers is basically same. The only difference is the trajectory of the movable jaw plate.

Mobile jaw crusher

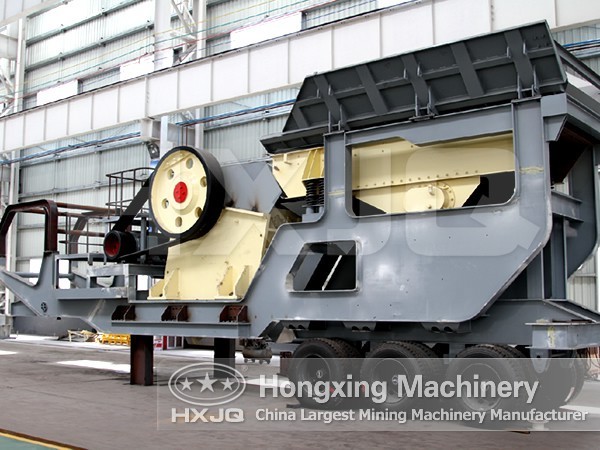

Mobile jaw crusher refers to the mobile jaw crushing plant equipped with jaw crusher and other required equipment, for moving conveniently in crushing site. The picture of mobile jaw crusher is as follow:

mobile jaw crusher

Parameters type

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
