Cement Mill

    supplyability: 1 Set/Sets per

    Weekprice: 8,852 - 270,000

    Port: Qingdao,Tianjin,Shanghai or others(as requested)

    Type: Ball Mill

    Application: cement,various ores,etc

Cement Mill

Cement mill is mainly used for the grinding of the finished products and raw materials in the cement plant as well as the grinding of various ores and other materials with grindability in the metallurgy, chemical, electric power and other industrial and mining enterprises.

Cement miller can be used to the open flow grinding and the circle flow grinding with classifiers. The wet grinding and dry grinding are available and the grinding and drying operation also can be simultaneously conducted.

Features:

1. It has the strong adaptability to raw materials;
2. It can realize the continuous production;
3. Large crushing ratio;
4. It is easy to adjust the grinding fineness of the materials.

Working Principle of Cement Miller

The materials get to the first silo, where there are ladder lining boards or corrugated lining boards installed with different sizes of steel balls, through the feeding device evenly and spirally. The centrifugal force produced by the rotating cylinder raises the steel balls to a certain height, which then fall down, resulting into a strong crushing and grinding to the materials. After being coarsely crushed in the first silo, the materials get into the second silo with plane lining boards embedded with steel sections through the single-wall partition for further crushing. The powder will be discharged by the discharge port. Thus, the grinding work is done.

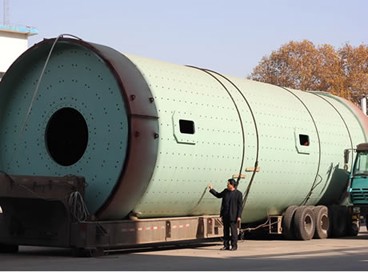

Cement Mill

Cement mill is also called cement ball mill and cement machinery. Cement mill can be used for further breaking materials that have crushed by crushers, and played an important role in Silicate and refractory production processes.

China cement mill is horizontal and cylindrical. Our cement millers have different sizes according to different requirements of customers. Cement mill can dry- grind or wet-grind materials according to the different requirements of them. The fineness of products can also be adjusted freely. Cement mill has no special requirements to its materials, and applies to a variety of materials with large crushing ratio.

Cement mill is divided into two positions, the first position has a corrugated liner. There are different specifications of steel balls in the first position. Materials enter into the warehouse from the hollow shaft. Then the materials and steel balls are taken to a certain height and then fall down. The materials are bumped and grinded during this process. The coarse grinded materials enter into the second position. The second position is equipped with flat lining and steel balls to further grind materials.

Cement mill is important cement equipment, and plays an important role in cement production. Cement machinery is one of the essential equipment in cement production.

Parameters type

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.83×7 Open flow Brim ZD60 4.5 245 6.5-8 43.8
Φ2.2×7.5 Open flow Brim ZD70 5 380 8-10 64.8
Φ2.2×11 Open flow Brim D110 35.5 630 12-13 104.6
Φ2.2×13 Open flow Brim D110 35.5 630 16-18 114
Φ2.4×13 Open flow Brim D110 35.5 800 20-23 130.6
Φ2.6×13 Open flow Brim MFY100 19.5 1000 28-32 158
Φ3×9 Circle flow Brim D125 41.2 1000 28-36.5 167
Φ3×11 Circle flow Brim D140 42.8 1250 36-47 180
Φ3.2×13 Open flow Brim D140 36.5 1600 45-50 225
Φ3.5×13 Circle flow Brim JDX1000 5.84 2000 60-65 275
Φ3.8×13 Open flow Central shaft MFY250 16.5 2500 60-62 320
Φ4.2×13 Open flow Central shaft JQS3550 15.6 3530 85-87 380
Φ4.6×14 Circle flow Central shaft JSI160-C 14.6 4200 120-135 485
Please enter your questions, such as ball mill: the type of raw material, feed size, capacity, specifications and the final product size, we will answer your questions as quickly as possible according to your needs. Now purchasing our products will enjoy the lowest discount, please call our hotline: 0086-0371-63313738
