Roll Crusher

    supplyability: 30 Set/Sets per Dayprice: 1 - 10000

    Port: QingDao,ShangHai,DaLian

    Type: teeth roll crusher

    Application: Rock crushing, Stone crushing, Cement, Mining

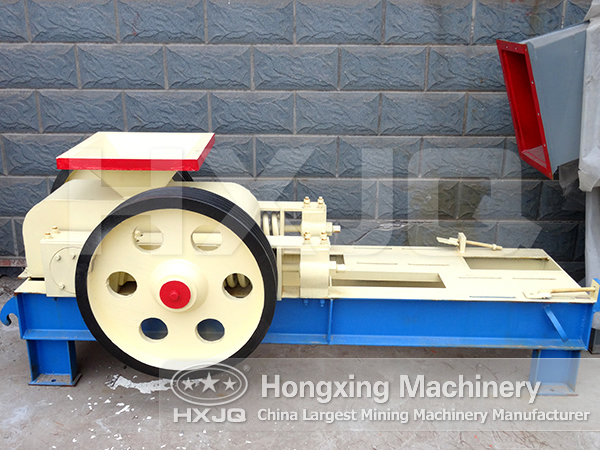

Roll Crusher

Roll crusher

Roll crusher also can be called roller crusher,double roll crusher or teeth roll crusher,is suitable to be used in such industrial departments as cement, chemistry, power, metallurgy, building material and refractory for the medium and fine crushing of medium hard materials such as limestone, slag, coke and coal.

 This series of double roll crusher is mainly composed of rolling wheel, supporting bearing for the rolling wheel, pressing and adjusting device and driving device.

Features:

Roller crusher has many performance features such as reliable working condition, simple maintenance, low running cost and adjustable discharging granularity.

Roll Crusher

Working Principle:

As the rollers of the teeth roll crusher is smooth, it has not only crushing function, but grinding function. After the materials go into the crushing chamber of the machine, under the driving force of the rotating roller, the materials will be pushed to be space between the two rollers. At the same time, influenced by the squeezing, cutting and grinding force of the rollers, the materials will begin to break. The broken small-sized particles will be thrown to bottom of the machine through the gap between the two rollers along the tangent line of the rotation of the rollers. The materials bigger than the gap will continued to be crushed to small particles.

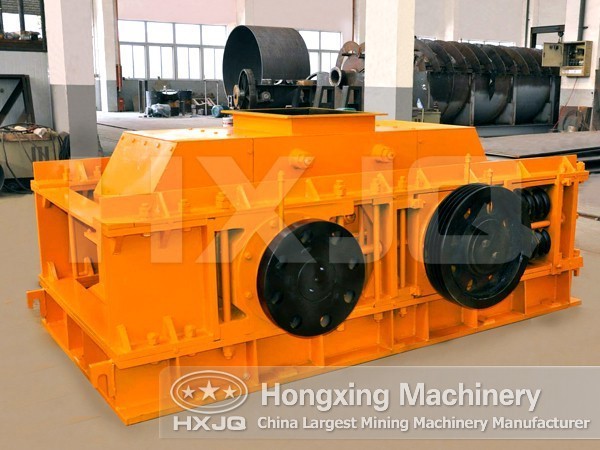

Teeth Roll Crusher

Hongxing teeth roll crusher mainly adopts special wear-resisting teeth rollers, with high performance and good quality, so it is mainly used for general crushing and fine crushing of ores and rocks with high and medium hardness in mineral processing, chemical, cement, refractory, abrasives, building materials and other industrial sectors. Hongxing teeth roll crusher uses the high squeezing extrusion force generated by relative rotation of wear-resistant rollers to crush materials. After materials being fed into the gap of rollers, materials will be crushed into required size under extrusion force and shear stress, and then, crushed materials will be discharged and then sent out by belt conveyor.

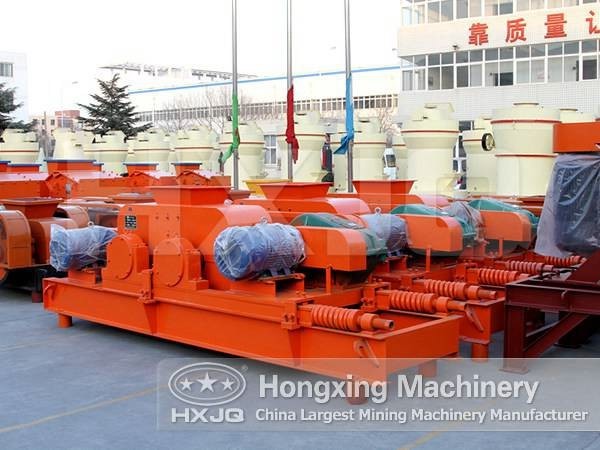

Teeth Roll Crusher

Notice on Using of Teeth Roll Crusher

1. Strength the deironing work. Non-crushable materials that fall between the two rollers will damage the crusher, which may cause stoppage, for this reason, deironing device should be installed in front of the crusher.

2. After the double roll crusher runs for a long time, the abrasion of the roll surface will cause over-fine product granularity. A t this time, pay attention to adjusting the discharging mouth or examine and repair the equipment.

3. Strengthen the examination of the teeth roll crusher and timely add lubricating grease on the lubrication part of the equipment to maintain excellent lubrication state.

Roll crusher is known for its two breaking rollers. Raw materials drop from the top to enter into the gap between the two rollers, and the two rollers relatively rotate to extrude and crush materials.

Roller crusher can be used in metallurgy, building material, quarrying and other industries. The double roll crusher is also widely used in coal plant and thermal power plant.

When the teeth roll crusher encounters materials can't be crusher during work, the rollers can automatically spring back, so that increases the gap between the two rollers, allowing excellent material falls and protecting equipment from damage.

Parameters type

Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
Roller diameter(mm) Ф400 Ф610 Ф700 Ф800 Ф1000 Ф1200 Ф1500
Roller width(mm) 250 400 400 500 600 600 600
Input Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
Discharging Gate(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
Processing capacity(t/h) 5-10 10-20 15-30 20-40 30-50 40-70 60-110
Power Models Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
Motor power(kw) 5.5×2 15×2 30×2 45×2 55×2 75×2 110×2
Total weight(t) 2.2 5.9 9.8 13.5 17.2 28.5 39.3
